office chair wheels 50mm
Office chair wheels Features:
A. Firm, Flexible, and easy to install
B. Low noise design, good protection to the floors
C. With or without total brake
D. Smoothing running, unique design
E. Rustless and corrosion resistance
F. anti-friction, good impact resistance, high load-bearing.
Are you looking for a way to upgrade your hardwood, carpeted, or tiled floors? Look no further than our high-quality office chair wheels! Our office chair wheels come with a universal standard size and socket of 7/16" x 7/8" (11mm x 22mm) and a diameter of 50mm, meaning they can fit most desk office ergonomic chairs, including Herman Miller, Steelcase, and others. To make sure you’re getting the best product, these wheels have passed BIFMA SGS quality standards. Not to mention, you’ll have a variety of colors to choose from, such as black, white, gray, silver, gold, red, orange, blue, green, and yellow. Best of all, they are available with factory direct wholesale prices until the end of 2023.
- Material: Durable PU and PA plastic
- Wheel Diameter:50mm 2 in.
- Feature: Swivel without brake
- Capacity:45kgs 99lbs per unit
- N.W:0.13kg
- Loading Qty:20GP=120000pcs
- Support EXW,FOB quotation, DDU price, C&F trade term
- Payment term: TT, LC at sight
- Lead time: 15days after receiving prepaid
More pictures for office chair wheels usage such as high-end office mesh chairs, computer chairs
We specialize in producing high-quality office chair wheels from China with decades of experience. Our production facilities, materials, and components are top-notch, so our office chair wheels are built to last. We offer flexible delivery options with speedy and reliable service, and our team is committed to helping you create a frame that meets your exact needs. Contact us today. Supplier@tincci.com
office chair wheels measurement guide:
office chair wheels can be used for a wide variety of applications, It is important to have the right caster for the right application, the right size caster will be the difference between having a working application to not working at all. Taking key measurements will ensure that the caster will fit the application.
The following are 4 areas to measure:
1. Diameter for best chair wheels
swivel casters diameter measurements can be important in many applications as it provides important information as to how much clearance you will need for your caster to swivel. The goal for a swivel caster is to be able to swivel 360 degrees.
To determine your office chair wheels diameter, lay the caster down on its side and measure from the center of the kingpin to the back edge of the wheel. A straight edge lying up against the face of the wheel will make it much easier for you to determine this measurement; the point where the tape measure meets the straight edge will determine your Swivel casters diameter.
2.Overall Height for best chair wheels
How to measure the overall height of the entire office chair wheels assembly? from the very bottom of the office chair wheels to the very top of the Chair mechanism. This is simple enough; just lie the castor on its side and take the measurement. Again, write these numbers down and be sure they’re appropriately labeled.
3.Width for best office chair wheels
This is often called the tread width. It represents the width of the wheel face, measured without a load present.
How to measure the office chair wheels width? stand the for office chair wheels upright and measure from the outside of one side to the outside of the other.
4.Grip Ring stem size
Grip Ring stem regular diameter approx 7/16″equal to 11mm. regular length approx 0.826 inches equal to 21mm
Any questions please consult the factory for the latest price and details.
Call us, Email us, Let's start the business now.
Are you looking for other hardware office chair parts?
Harware Office chair parts are including below, Go ahead to click it:
- Brand Name
- iTQfurniture
- Product Name
- Caster Wheel
- Model Number
- T-6008
- Type
- Without Brake,Unlocking
- HS Code
- 3926909090
- Material
- Nylon
- Minimum Order Quantity
- 5000pieces
- Color
- Balck
- Net Weight
- 0.13kg
- Carton Dimension
- 0.46*0.29*0.35m
- Package
- 200pcs per carton
- Loading Qty 1*20GP
- 120000Pieces
- Production Capacity
- 500000Pieces per month
- Application
- Home Office/Office Building/Home Bar
- Usage
- Swivel chairs,Office chairs,Gaming chairs,Training Table
- Customization
- Customized logo&Customized packaging&Customized color
- Quality Standard
- Passed BIFMA
- FOB Port
- Foshan/Shenzhen
- Lead Time
- 10days~25days
- Payment
- T/T,PayPal,L/C,D/P,WesternUnion
- Place of Origin
- China
- Wheel Bearing Type
- Plain Bearing
- Wheel Hardware
- Friction Grip Stem Pin

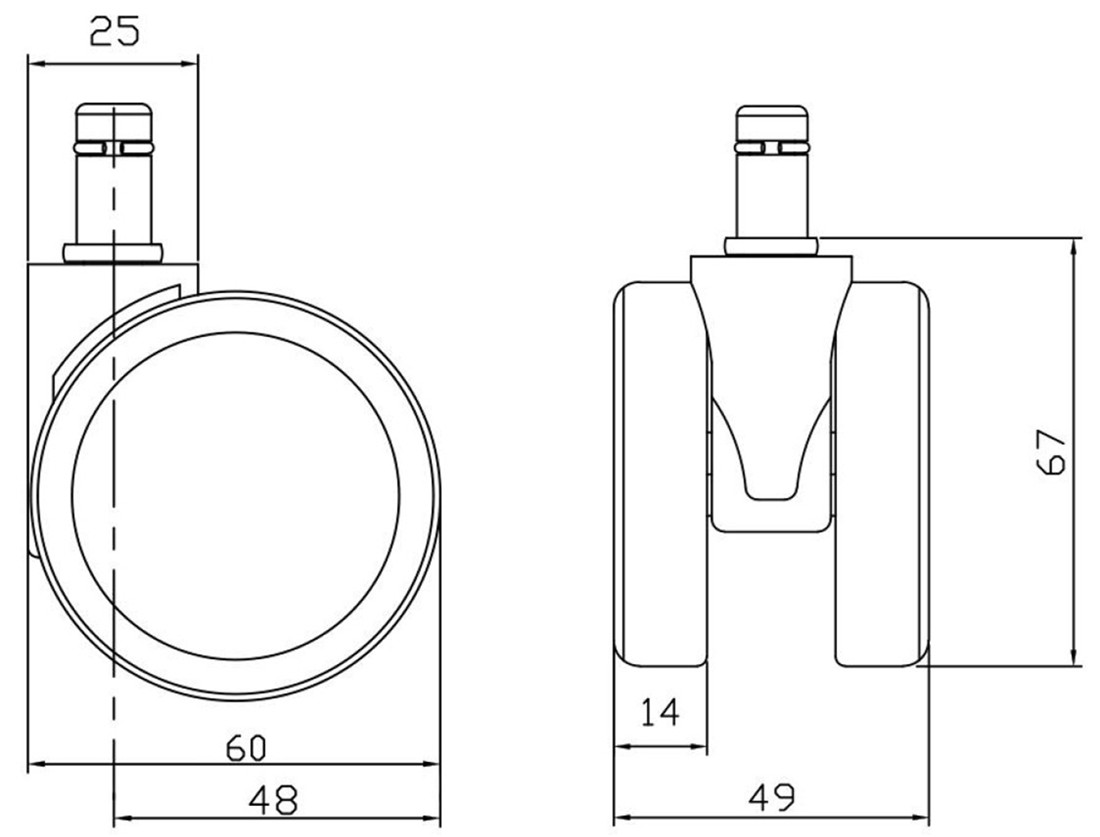

- Wheel Load capacity per unit
- 45kgs 99lbs
- Wheel Diameter
- 60mm(2.36inch)
- Wheel Height
- 67mm(2.64inch)
- Wheel Width
- 49mm(1.93inch)
About us-chair components suppliers
ITQfurniture is a trademark that is registered and owned by Changsha Tianqi Furniture Co., Ltd. We are OEM and ODM swivel chair components suppliers, manufacture standard and custom swivel office chair parts. Products available include office chair wheels, chair bases, chair gas lift (chair gas cylinders) and chair mechanism, chair armrest. Materials include Metal aluminum alloys, metal Iron, Plastic, and rubber PU.

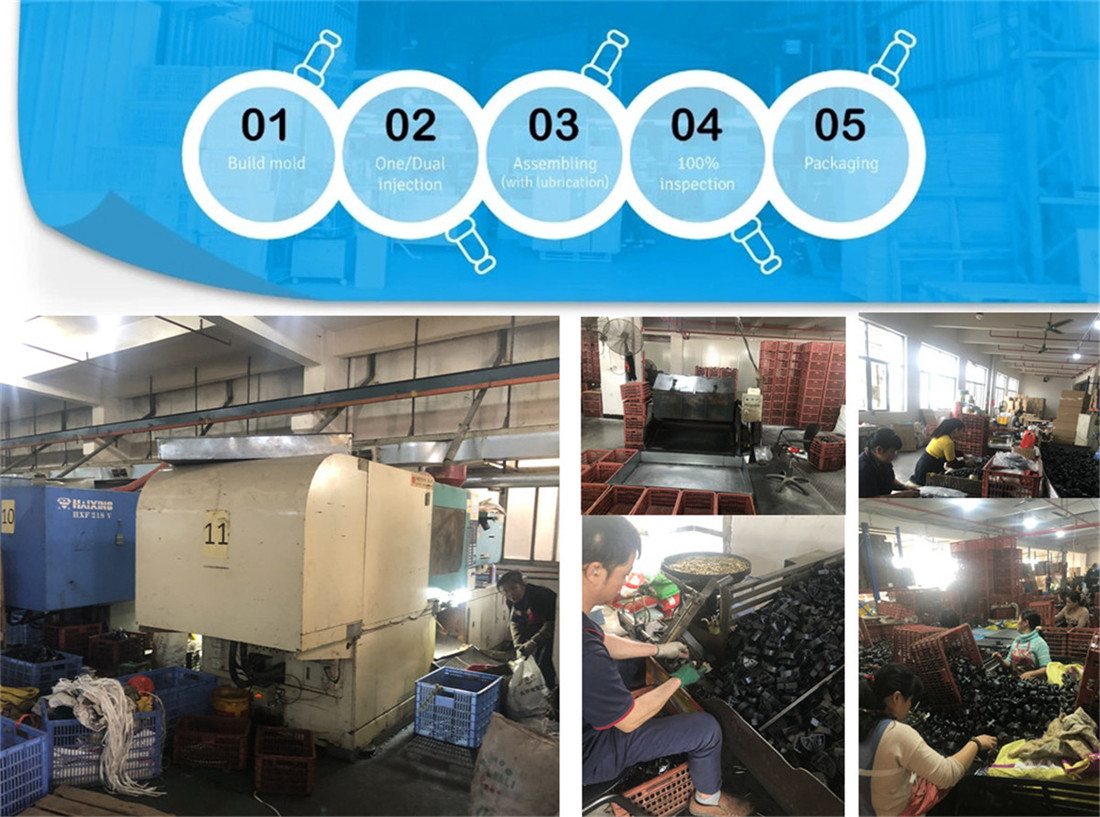

1.Office chair wheels are available in 25 mm to 100 mm diameter sizes with locking & unlocking casters. Applications of office chair wheels include furniture, healthcare, display, beauty supply & technology. The below picture is an Office chair parts manufacturer workshop.
2.Chair bases divide 4 Leg bases and 5-star Bases. Available diameter for star chair bases ranges from 20" to 33".chair bases material are available in plastic, steel, and aluminum. Designed to accept a standard 50 mm diameter chair gas lift, chair Bases Accept friction ring stems used with most office chair wheels and glides. The below picture is the Office chair parts manufacturer workshop.
3.chair gas lift also called chair gas cylinders, which are available from 1.5 inches to 13inch stroke length(rename drive length) with swiveling & non-rotating, customizing. Applications of chair gas lift (chair gas cylinders) include office chair and ergonomic chair, task chair and executive chair, desk chairs and computer chairs, gaming chairs and bar stools, etc. The below picture is the chair components suppliers workshop.
4.Chair mechanism is located underneath the seat of a chair to support the point of the chair, linking the chair gas lift where it is used to connect the chair into a whole. Including swivel chair mechanism, butterfly tilt mechanisms, gaming chair tilt mechanism, And the chair mechanisms center hole are a match with all kinds of standard tapered chair gas lift (chair gas cylinders). The below picture is the chair components suppliers workshop.
5.Chair armrest always come in pairs, to provide a place for you to rest your forearms and relieve strain on your shoulders and wrists. They are divided into metal iron, steel aluminum alloys, and Plastic office chair armrest by material. Also divided 2d armrest,3d armrest, 4d armrest, ergonomic armrest, office chair hand rest by function. Our quality certification about SGS bifma x5.1 en 1335 for office chair wheels, chair bases, chair gas lift (chair gas cylinders), and chair mechanism.tuv certificate is for class 4 chair gas lift (chair gas cylinders)
50% choose our business due to our customer service.
The product's chair parts come in at second at 43%,
and the price was dead last at .06%.
Custom guidance by Office chair parts manufacturer
Chair components suppliers Custom Capability
We have a professional design team, Support Customized for office chair components appearance, swivel chair parts packing and chair spare parts Logo printing and so on; Offer the competitive price with stable good quality. Established long-term and friendly cooperation relations with customers which from Italy,Vietnam,Mexico,USA,Brazil,Russia,Switzerland. We can design office chair wheels, chair bases and chair gas lift (chair gas cylinders), Chair mechanism, Chair armrest according to customer requirements. After the client puts forward the design requirements, Our customization team will evaluate the feasibility of the plan and the design cycle according to the design requirements. And will provide some suggestions to improve customer’s design with our professional knowledge and valuable experience, then collect feedback from customers. In the end, we will proceed with some samples until customer approval.
office chair wheels customization
office chair wheels customization is based on the customer’s requirements (caster material, castor colors, wheel dimension, castor height, hardware length, and other functions), designed to meet the requirements for customers' furniture. then make a detailed list quotation for office chair wheels and mold cost for injection work. Once you approve the cost, we will produce some samples until you satisfy, In the end, we will produce the mass production after sample confirmation.
Chair base customization
The customization for chair base is based on the customer’s appearance(5star chair base,4 legs base,3 leg base), surface treatment(Raw polished bases, finish polished bases, powder coat painted bases) , Colors (black,red, gray,blue, green, yellow etc.), Radius range from 200mm to 350mm. Base on your finish-chair and your special requirements,we will offer professional suggestions to improve mold more available.Once you approve the cost for injection mold and chair base unit price, we will produce some samples until you are satisfied.
Chair gas lift (chair gas cylinders) customization
The customization for chair gas lift (chair gas cylinders) are based on the customer’s function(swivel chair gas lift, swivel without lifting gas lift, lifting NON-ROTATING chair gas lift, auto reduction swivel gas lift), dimension (stroke drive length, outer tube length, outer tube diameter, total open length). Base on your finish-chair and your special requirements, we will offer professional suggestions to improve mold more available. Once you approve the cost for mold and chair gas lift (chair gas cylinders) unit price, we will produce some samples until you are satisfied.
