What are office chair caster wheels? office chair caster wheels are a set of 5 casters or a set of 4 wheels in a swivel frame with kinds of floors or carpet. they are usually used for the support and movement of office chairs. The universal standard size is 7/16" x 7/8" (11mm x 22mm) sockets for stems. The different dimensions are office chair caster wheels diameter, width, and height. Our office chair caster wheels diameter were available from 25 mm to 100 mm with locking & unlocking function. The width of office chair caster wheels available from 28mm to 73mm.The height of office chair caster wheels available from 32mm to 111.5mm.
- Easy to install
- Simple lock and unlock function
- Set of 5 Wheels
- Durable PU and PA plastic
- Kind to most surfaces
- Custom colors

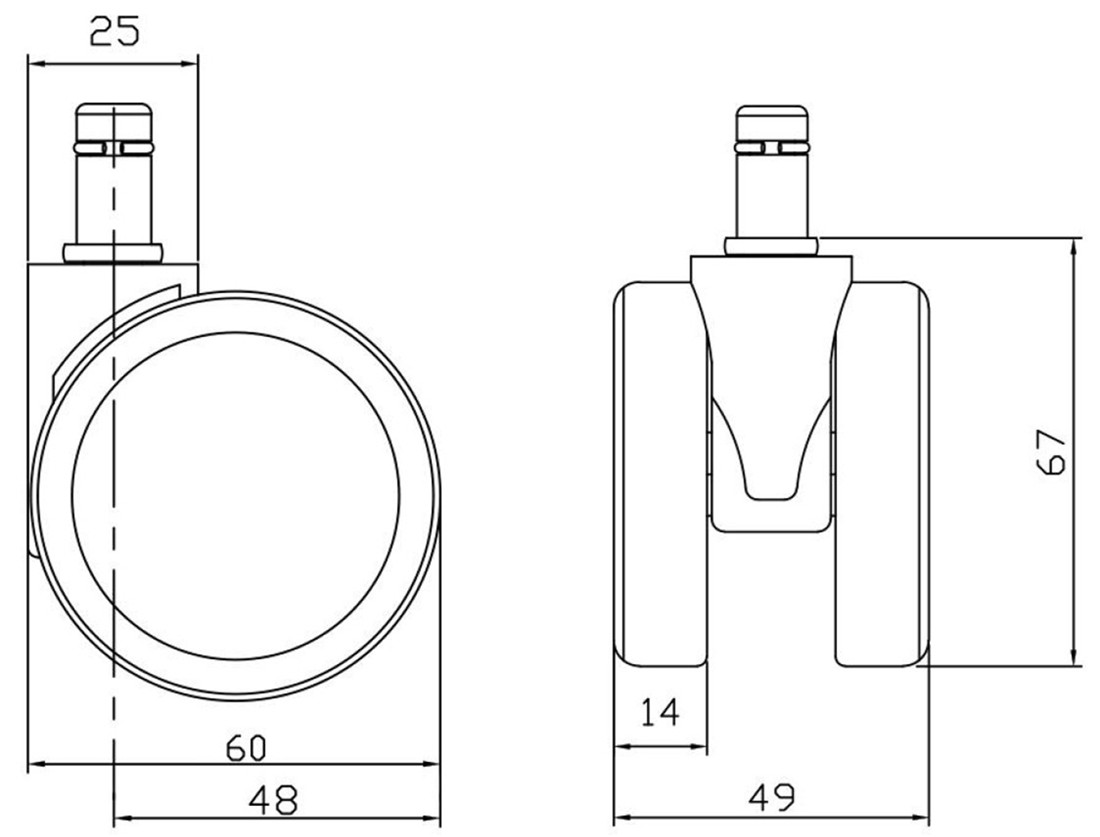

- See the dimension picture below
More pictures for office chair caster wheels usage such as high-end office mesh chairs, computer chairs

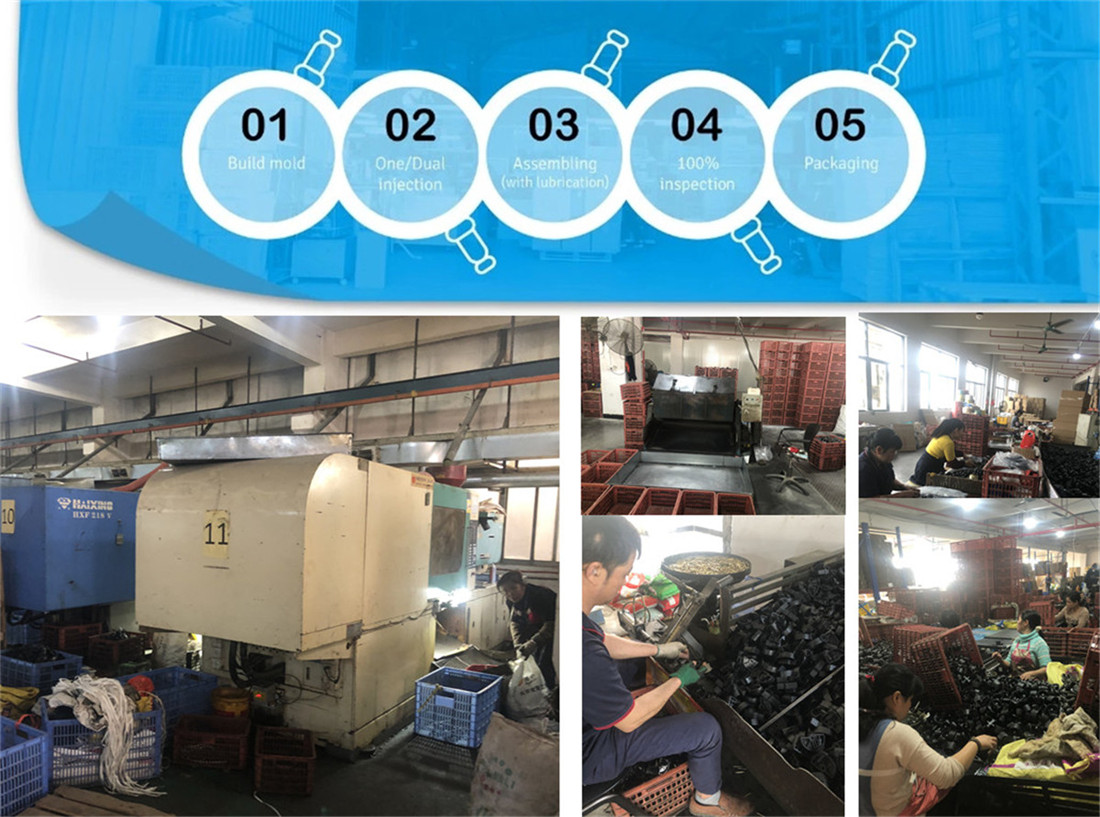

Manufacturing steps for office chair caster wheels

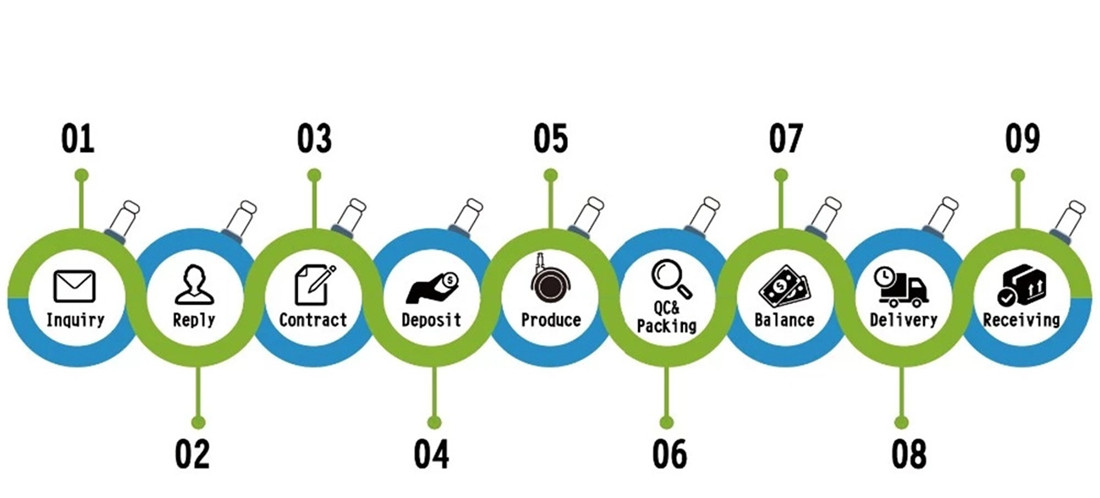

How to purchase and receive office chair caster wheels?
Office chair caster wheels measurement guide:
Office chair caster wheels can be used for a wide variety of applications, It is important to have the right caster for the right application, the right size caster will be the difference between having a working application to not working at all. Taking key measurements will ensure that the caster will fit the application.
The following are 4 areas to measure:
1. Diameter for best office chair casters
swivel casters diameter measurements can be important in many applications as it provides important information as to how much clearance you will need for your caster to swivel. The goal for a swivel caster is to be able to swivel 360 degrees.
To determine your Office chair caster wheels diameter, lay the caster down on its side and measure from the center of the kingpin to the back edge of the wheel. A straight edge lying up against the face of the wheel will make it much easier for you to determine this measurement; the point where the tape measure meets the straight edge will determine your Swivel casters diameter.
2.Overall Height for best office chair casters
How to measure the overall height of the entire office chair caster wheels assembly? from the very bottom of the office chair caster wheels to the very top of the Chair mechanism. This is simple enough; just lie the castor on its side and take the measurement. Again, write these numbers down and be sure they’re appropriately labeled.
3.Width for best office chair casters
This is often called the tread width. It represents the width of the wheel face, measured without a load present.
How to measure the office chair caster wheels width? stand the for Office chair caster wheels upright and measure from the outside of one side to the outside of the other.
4.Grip Ring stem size
Grip Ring stem regular diameter approx 7/16″equal to 11mm. regular length approx 0.826 inches equal to 21mm
Any question please consult the factory for latest price and details.
Call us,Email us,Let's start the business now.
